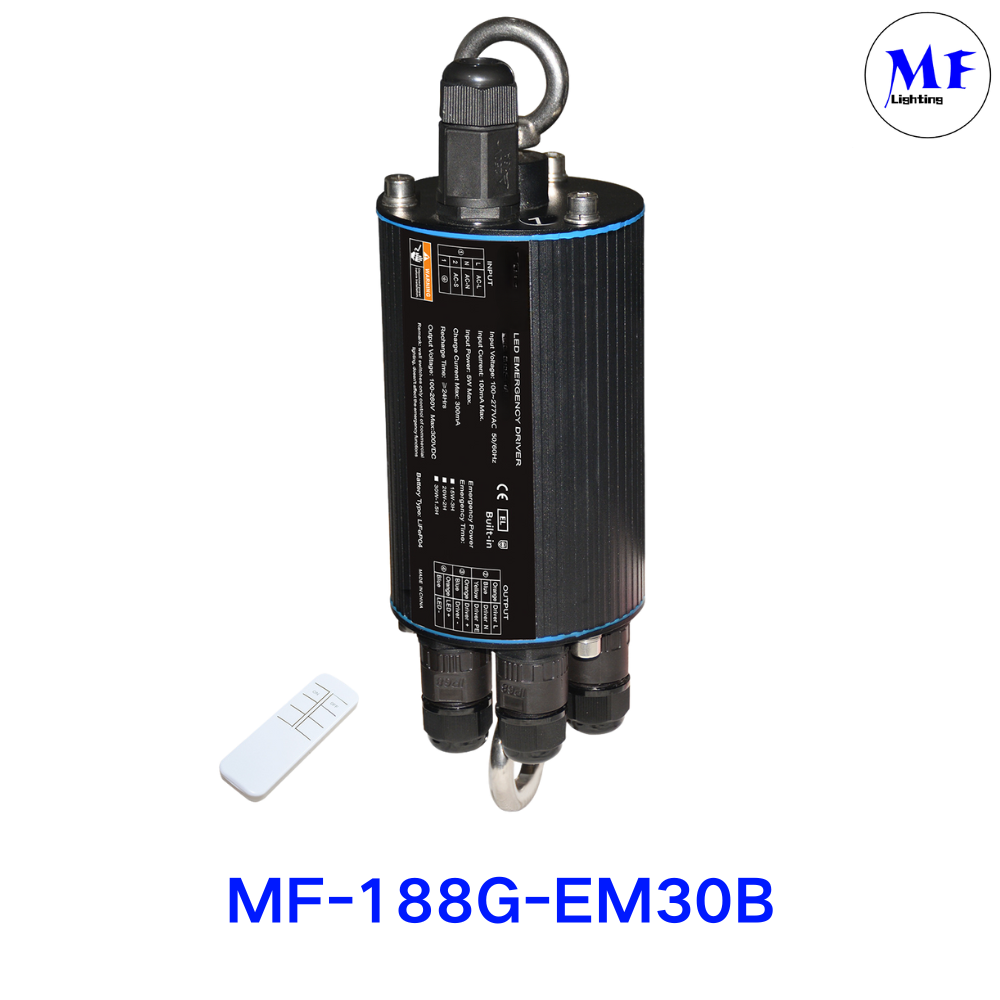

EMERGENCY LED DRIVER FOR UFO HIGH BAY LIGHT
The battery is built-in and can be matched with ternary lithium batteries or lithium iron phosphate batteries. Input: AC220-240V, 50-60Hz. Output: DC20- 260V.
It is suitable for indoor and outdoor hanging lamps such as industrial and mining lamps and UFO lamps with an external driver output current ≤ 3A (for detailed parameters.
Descriptions:
Have authorized CE certificate
With infra red wireless remote control
Constant power output
High voltage output
Charging and dis-charging protection function and over heat temp. protection
Mock-up electricity pause emergency testing function
Can be power off under emergency status Indication light: city grid electricity
Seasonal self detect function
Protection functions: over voltage, short circuit, over load and open circuit
Metallic housing, comply EMC, FCC and C-tick ordinances
IP grade: IP65
| Input voltage | 100-277 Vac 50/60Hz |
| Input current | 0.003A Max.@230Vac |
| Input wattage | <5.0W |
| Power factor | ≥0.5@230 Vac |
| Battery charging current | 350mA Max. |
| Battery charging time | ≤24h Max. |
| Emergency output Voltage | DC100-260V,DC300V Max. |
| Emergency power | 30W/20W/15W |
| Emergency time | 1.5H/2H/3H |
| Battery | Li-Fep04327006000mAh-9.6V |
| Storage Temperature | -20-40ºC |
| Electric Strength | 3000Vac 5mA(input to output) |
| IP Rating | IP65 |
| Maximum shell temperature | 75ºC |
| Warranty | 3 Years |
| Relevant standard | IEC61347-2-7/IEC61347-1/EN55015 |
Order information
| Emergency power | Emergency Time | Battery |
| 5W | 1.5H | LiFeP04 1.5Ah 6.4V |
| 8W | 1.5H | Li-ion 2.5Ah 7.4V |
| 12W | 1.5H | LiFeP04 4.0Ah 6.4V |
| 8W | 3H | Li-ion 4.4Ah 7.4V |
| 12W | 3H | Li-ion 6.6Ah 7.4V |
LED indicator:
Green breathing pattern: charging mode
Green stable: battery fully charged
Red flashing: failure as below
Red flashing Once per second: Battery is not connected
Battery is defective
Red flashing four times a second: Load failure during emergency mode, open circuit/short circuit
Green flashing: Emergency status one per second
Remote control:
1: 0S < Key ON ≤1S, Enter a simulated state of emergency, the green indicator blinks once every second
2: 0S < Key OFF ≤1S, In simulated emergency situations, return to the normal charging state
3: 0S < Key OFF ≤1S, In the emergency state, the emergency state is turned off.
Self-test:
When emergency driver is on power, every 180 days ±1 day automatically enter the emergency state, emergency duration until the battery is discharged, then return to power-on status
1:If it is used for the first time or it does not enter the normal working state after being over-discharged, it is necessary to connect the main power to activate the emergency power supply and charge it for 24 hours. Please use the original emergency battery provided
2:When installing and using it, please keep it away from heat sources and only use it within a certain working temperature range.
3:Should be stored in a cool, dry environment.
4:After prolonged storage, recharge at least once every 6 months as needed.
5:Emergency driver testing must be longer than 1min, don't press the testing button frequently.
This product is a MF LED Emergency Driver MF - 188B with self - detection, constant - power emergency output, built - in battery and multi - protection functions. It suits for LED fitting with external LED driver.
The relevant application scenarios are as follows:
Emergency Lighting for LED Fixtures: When the power is off, it can provide emergency power for LED lights.
For example, in case of a power outage in buildings such as offices, homes, shops, and public facilities like schools and hospitals, the LED lights equipped with this emergency driver can still work, ensuring basic lighting needs are met.
