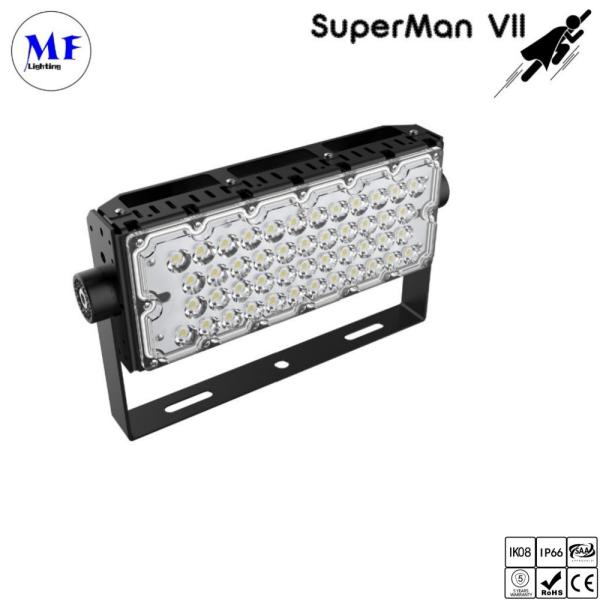

6 Years Warranty Sport Spot Lighting High Mast Power LED Flood Light 150W-600W Stadium For Airport Soccer Field Plaza

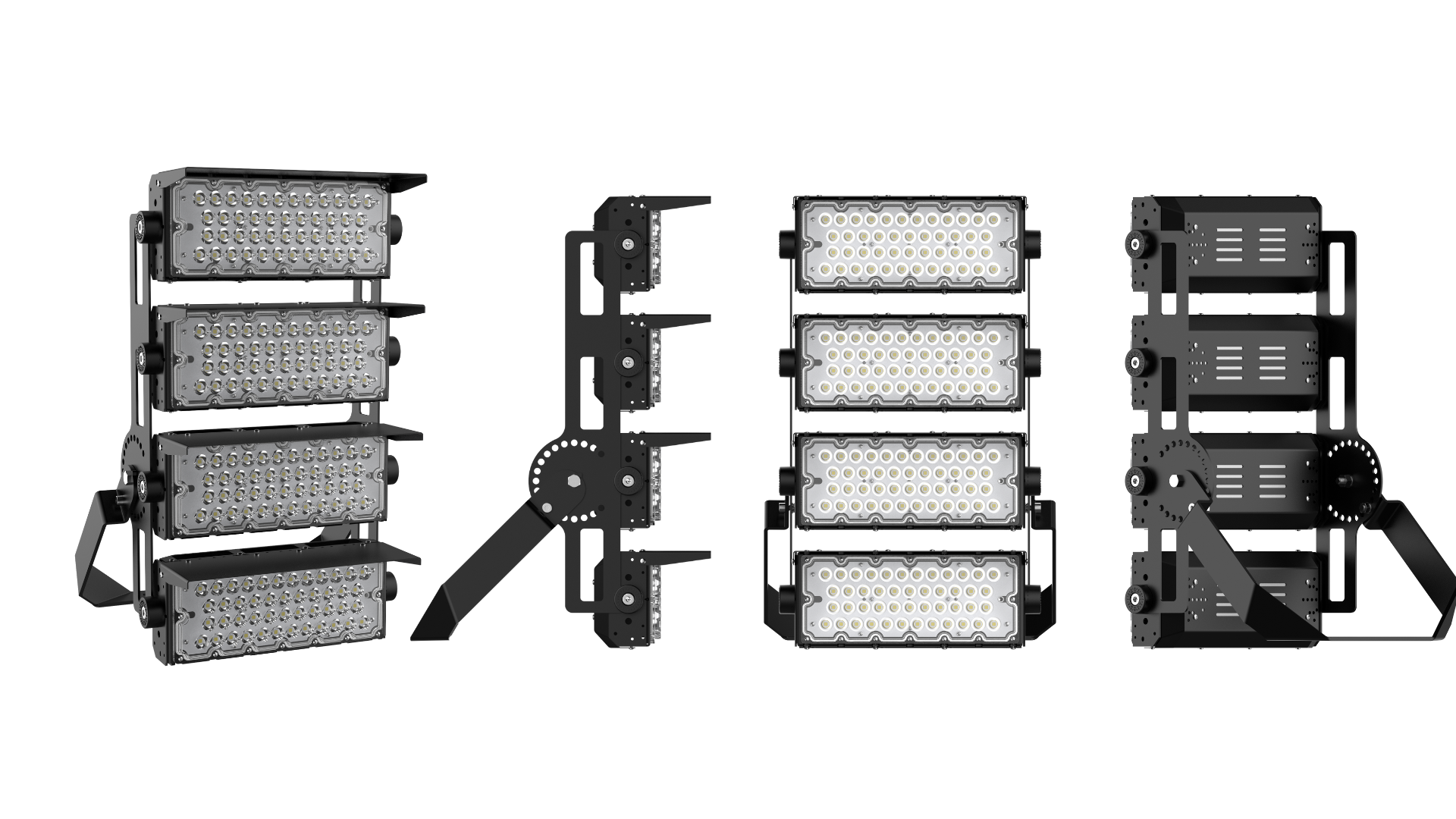

1.Modular Design: each module has powerrating from 100W to 200W, four modulescan be combined into 800w
2.Handlebar Design: easy for installation & carry
3.Die Casting Heat Sink: concise appearance excellent thermal management & compact structure.
4.Racked Angle: allows for precise installation, up to 270°
5.High-strength cold-rolled plate design with integral flanging and bending,light weight, high mechanical strength
6.Special Corosion Treatment:to reach the WF2 standard and suitable for harsh environments.
7.Tempered Glass Cover: achieve lK08 rating and additional protection to thelens to apply harsh conditions.
8.Spill Light Options: reduces light pollution
9.Double Surge Protection: driver & extra 10KV SPD
1.Energy Efficiency: LED High Mast Lights utilize efficient LED light sources, which result in higher energy utilization compared to traditional lighting methods, thereby saving power consumption. LED technology also offers long lifespan and lower maintenance costs, reducing the frequency and expenses associated with replacing the fixtures.
2.High Brightness: LED High Mast Lights deliver outstanding brightness output, providing wide illumination coverage. The high brightness of LED light sources ensures uniform and bright lighting in large areas, enhancing visibility and safety during nighttime.
3.Adjustable: LED High Mast Lights often come with adjustable lamp heads, allowing for the adjustment of light angles and illumination directions as per requirements. This adjustability enables the fixtures to better cater to the lighting needs of specific locations, such as parking lots, highways, ports, and more.
4.Durability: LED High Mast Lights are constructed using high-quality materials, ensuring durability and resistance to vibrations. They can operate in harsh weather conditions and withstand high wind speeds and other environmental pressures, ensuring long-term stable lighting performance.
5.Environmentally Friendly and Energy Saving: LED High Mast Lights do not contain harmful substances such as mercury and lead, making them more environmentally friendly. The high energy efficiency of LED technology reduces energy consumption, helping to reduce carbon emissions and making them a sustainable lighting choice.
| Optical cover/lens type | Lens |
| Luminaire light beam spread | 10°/20°/40°/60°/90° |
| Corrosion rating | WF2 |
| Certifications | CE/ROHS/ENEC/ETL/SAA/PES/SASAO |
| Light source engine type | LED |
| Input voltage | AC100-277V |
| Input frequency | 50 or 60Hz |
| THD | <15% |
| Power factor (min) | 0.95 |
| Housing material | Aluminum |
| Reflector material | Aluminum |
| Optical cover/lens material | Polycarbonate |
| Optical cover/lens finish | Frosted/transparent |
| Ingress protection code | IP66 |
| Mech.impact protection code | IK10 |
| Light output | 150lm/w and 170lm/w |
| Ambient temperature range | -40°C-60°C |

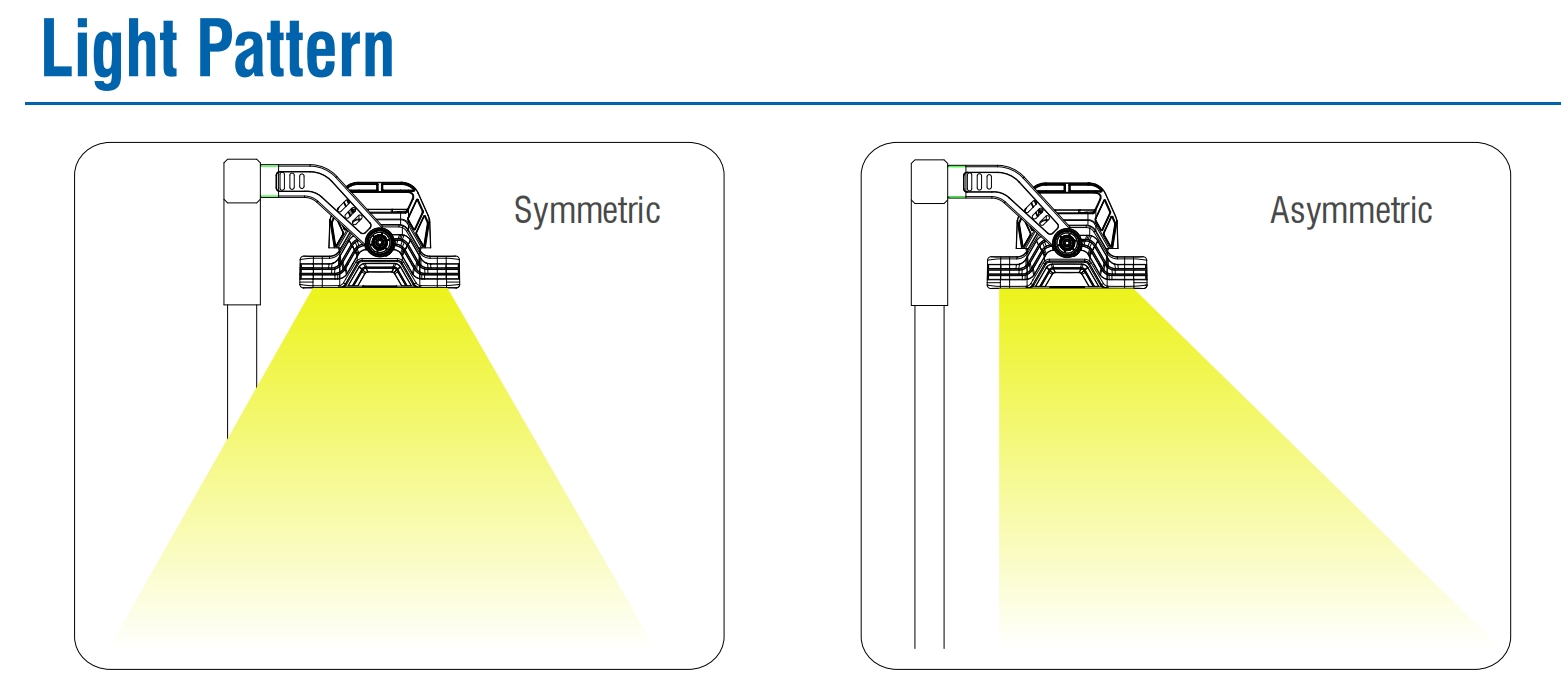

Light Distribution:

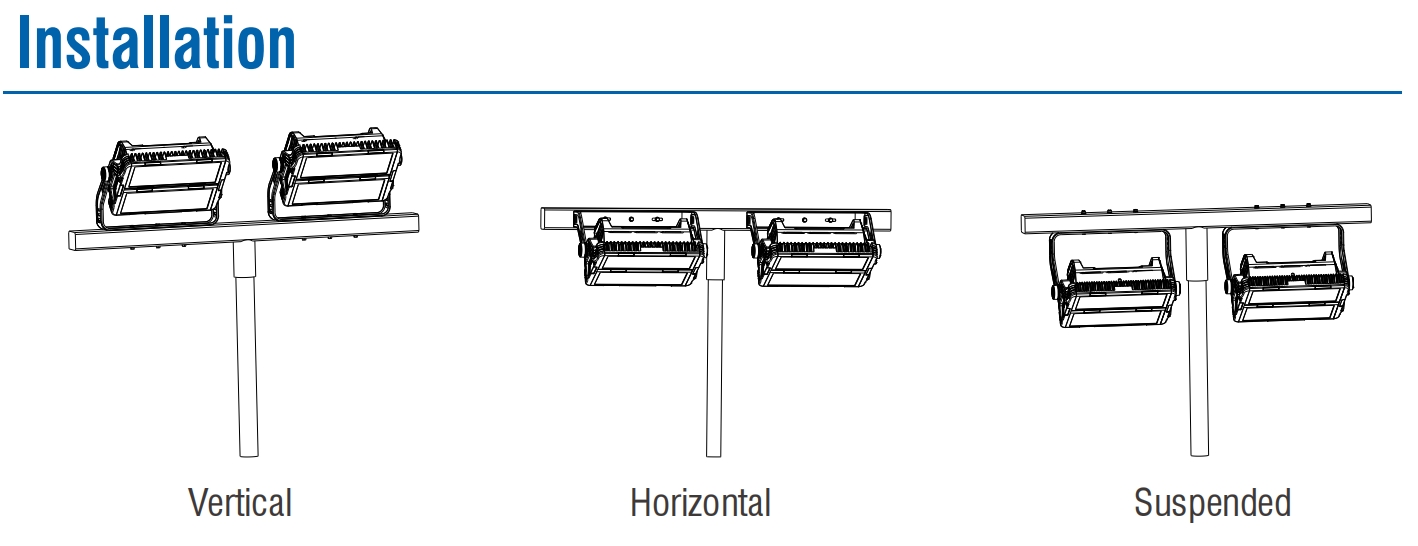

Installation:
LED high mast lights are extensively used in various applications that require powerful and efficient lighting solutions. Here is a paragraph describing the applications of LED high mast lights:
LED high mast lights find widespread application in large outdoor areas that demand high-intensity illumination. These lights are commonly used in sports stadiums, providing exceptional brightness and uniform lighting for sporting events and nighttime matches. They are also utilized in airports and transportation hubs to illuminate runways, taxiways, and apron areas, ensuring safe and efficient operations during low-light conditions. Additionally, LED high mast lights are employed in industrial facilities, warehouses, and logistics centers, where they provide bright and reliable lighting for loading docks, storage yards, and parking areas, enhancing safety and productivity. Furthermore, these lights are commonly used in seaports to illuminate container yards, docking areas, and cranes, enabling efficient cargo handling and enhancing overall security. Their applications also extend to large parking lots, highways, and intersections, where they provide excellent visibility, reducing the risk of accidents and ensuring smooth traffic flow. Overall, LED high mast lights serve as indispensable lighting solutions for a wide range of outdoor environments that require powerful and energy-efficient illumination.
- Roads and highways
- Parking lots
- Sports stadiums
- Railroad yards
- Shipyards
- Warehouses
- Truck stops and rest areas
- Outdoor parks and recreation areas
- Playgrounds
- Storage facilities
- Any Outdoor place,Etc
LED high power flood stadium lights are widely used in various applications where powerful, focused, and energy-efficient lighting is required. Here is a paragraph describing the applications of LED high power flood stadium lights:
LED high power flood stadium lights are extensively employed in outdoor sports stadiums and arenas to provide exceptional lighting for sporting events. These lights offer high-intensity illumination and excellent beam control, ensuring uniform coverage of the playing field, enabling athletes to perform at their best, and enhancing the viewing experience for spectators. Additionally, these lights find application in large outdoor concert venues and music festivals, where they create a vibrant and visually appealing atmosphere for performers and audiences alike. Their ability to produce bright and focused lighting makes them suitable for illuminating stages, outdoor sets, and event spaces during film and television productions. Moreover, LED high power flood stadium lights are used in architectural lighting projects, highlighting the facades of buildings, monuments, and landmarks, enhancing their aesthetics, and creating dramatic visual effects. These lights are also deployed in industrial facilities, warehouses, and construction sites, providing ample lighting for improved safety, productivity, and overall operational efficiency. Overall, LED high power flood stadium lights are versatile lighting solutions that find application in various outdoor environments, ranging from sports and entertainment venues to industrial and architectural settings.
Packing and Production:
About us:
Our factory has been producing LED lights for indoor and outdoor applications, Such as LED down lights, LED Panel Light,LED wall light,LED tube light, LED spot light, LED track light,LED ceiling light,LED high bay light,LED tri-proof light,LED flood light, LED high mast light, LED Stadium light, LED street light, LED Garden light and LED explosion proof light. Our products are widely intalled in large-scale lighting applications, such as in large farms, factories, schools, bridges, tunnels, ports, subways,airports,minings, hospitals and many other applications.
Mingfeng specializes in LED lights, and produces and exports high-quality LED light fixtures to Asia, Europa, North American, Latin American and Pacafic ocean island for almost 132 countries, all LED lights are under ISO9001 system with professional team management, the certificate of CE, CB, ENEC,RoHS,CSA, UL, SAA and REACH are certifiedy by SGS or TUV depends on LED lights family.
MF R&D team are with passion, persistence and technology know-how to develp our LED lights, our engineers takes our LED develpment as baby care onto any single tiny details, the aim to this is that providing high quality LED lights by our vision plus knowleadge ,and at the end of story,enable an quality life and work under MF lights for all users in this planet, MF stuff knows "LIGHTS THE WORLD" is not a joke, but make it happen day by day with hard working.
