12W/15W/18W Black High Power COB LED Down Light 60 Beam Angle Dimmable For Hotels
Description:
MingFeng, as a prominent China LED down light manufacotry, devotes himself to providing high quality COB LED downlights for the replacement of traditional down lights in residential, museum, office and commercial applications.
MingFeng COB led downlights is the most comprehensive architectural LED downlights in the market to replace CFL downlight, Cut out are 93mm, 125mm, 165mm, 195mm power are 9W / 15W / 22W / 30W
Luminous Flux efficiency up to 85lm/w, Also CRI>80 is available, the whole series provide a collection
of intelligent led lighting solutions,
A reliable heat management and different optical systems based on the size of the lamps help exploit at the best characteristics of every luminaires, COB LED DOWN LIGHT maximize efficacy with minimum maintenance,making surroundings more dynamic. Advanced optic design precisely control the beam angle to achieve an ideal lighting effect. Anti-glare strcuture brings pleasant and comfortable visual experience.
Specifications:
| Model No | MF- TD204 |
| Input voltage | 200-240Vac/220Vac, 50hz/60hz |
| Power(watt) | 12W/15W/18W |
| Dimension | Product Size: Dia145x69mm Cutting hole size: 125mm-130mm |
| Color temperature | 3000K/4000K/5000K/6500K |
| LED Chip | citizen 1201C4 |
| PF | >0.92 |
| Housing Color | Matt black |
| Luminous Flux (lm) | 1200lm/1500lm/1800lm |
| CRI(Ra) | ≥83 |
| Lifespan | ≥40000hrs |
| Beam Angle | 60° |
| Material | Die-casting Aluminum |
| Operating Temperature | -200C ~400C |
| Dimmable | Y |
| IP | 20 |
| Protection Against Shock | IK01 |
| Dimension Single Package | 180x190x100mm |
| Weight Single Package | 0.83KG |
| Certificate | CE/RoHS |
| Warranty Period | 3 years |
Competitive Advantage:
- Die-casting aluminum heatsink, advanced cooling system.
- High output CREE COB LED Chips.
- 60 degree flood beam angle, soft light effect.
- Excellent reflector, complete visual comfort.
- IP20 design suitable for damp environment.
- CRI>80.
- Kn<10 driver, reliable performance.
- Smooth dimming on most dimmers.
- Life to 70% lumen maintenance, 45,000 hours.
- High power factor>0.92.
- 3 years warranty.

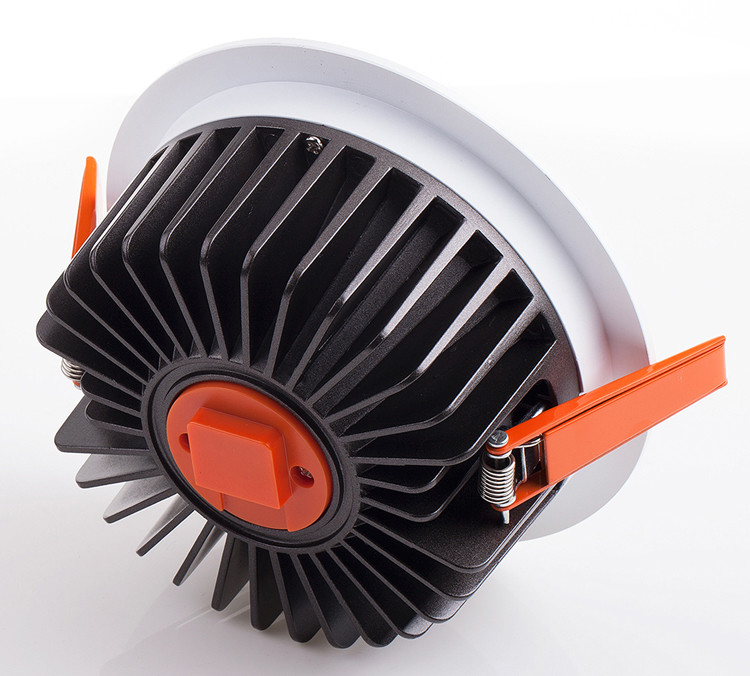

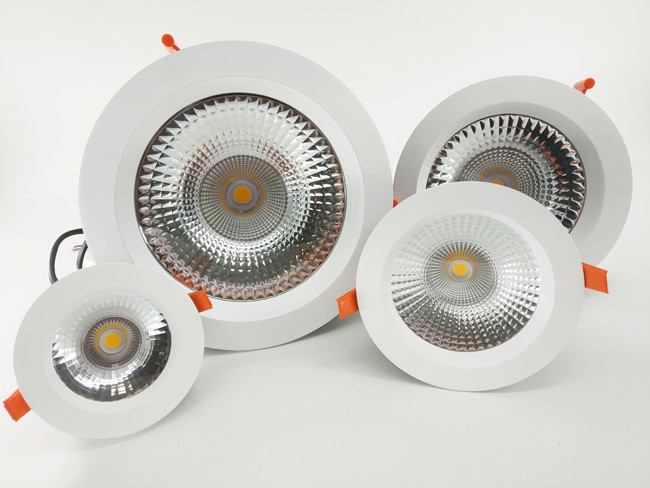

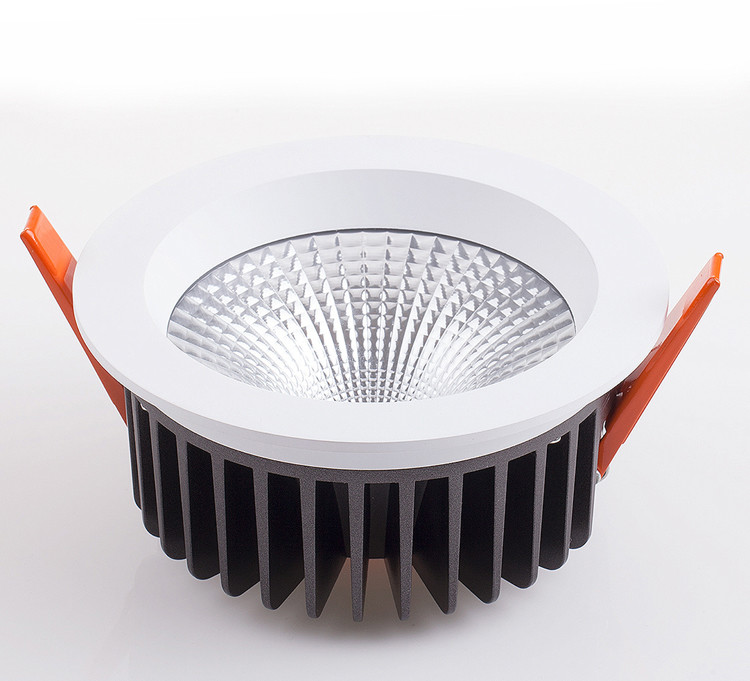

COB LED DOWN LIGHT SHOW:

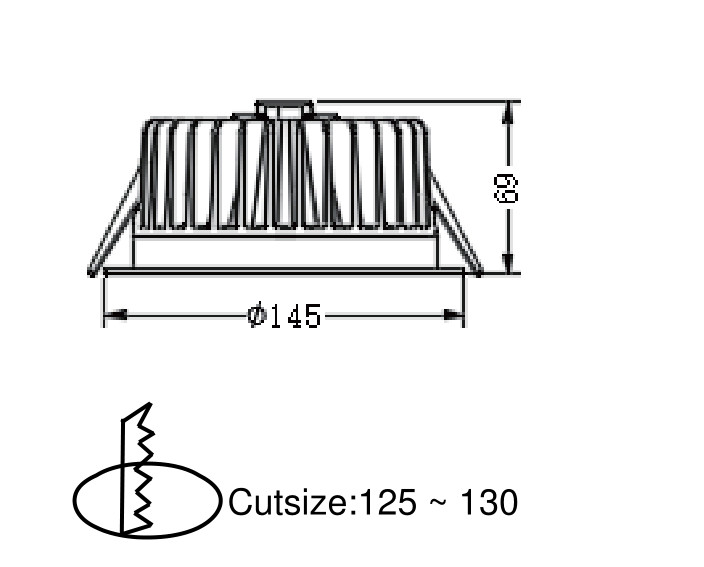

Dimension:

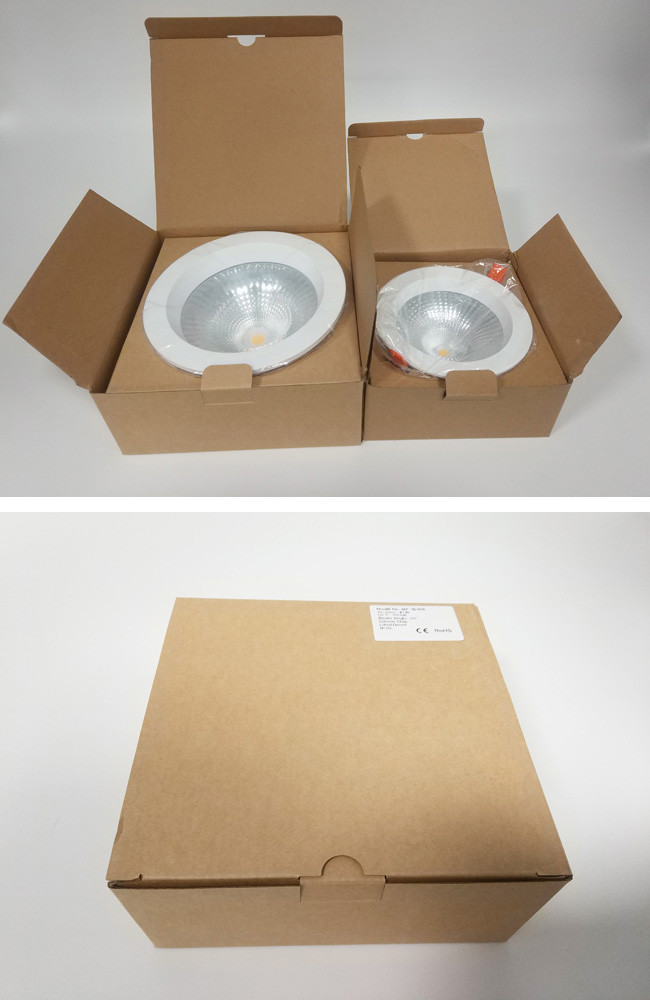

Packing Information :

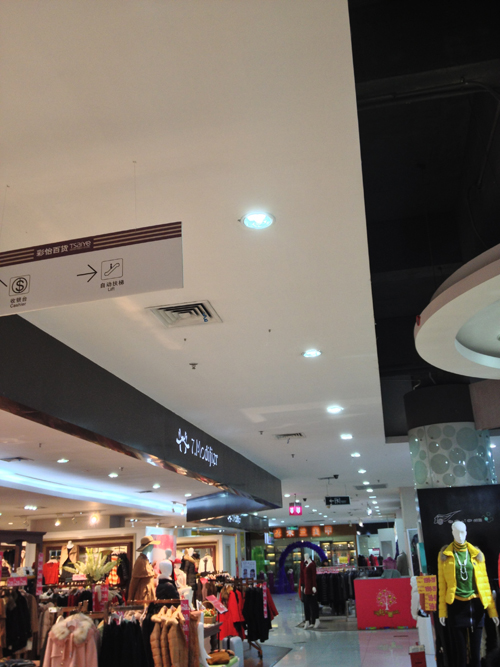

Applications:
Widely used in automobile exhibition, clothing shop, furniture store, shoe stores, jewelry store, exhibition, art exhibition hall, the villa, and hotel, etc.
