8 Inch 14w 25w 35w COB Led Down Light Dali Dimmable IP44

Brand Name : MF

Model Number : MF-901S035

Certification : CE, RoHS

Place of Origin : China

MOQ : 100PCS

Price : Negotiable

Payment Terms : T/T, Western Union, Paypal, L/C

Supply Ability : 10,000pcs/Month

Delivery Time : Depends on orders

Packaging Details : 57*51*29.5cm/8pcs, G.W: 15.8KG

Power : 14W / 25W / 35W

Color : White RAL9003

Luminous Flux : 1100LM/2000LM/3000LM

UGR : 19

Beam angle : 60 Deg.

Dimmable : Triac Dimamble/ 1-10V Dimmable/DALI

Input : 220-240Vac, 50/60Hz

LED Brand : COB

LED Driver : Lifud

Certificated : CE, RoHS

Contact Now

8 Inch 14w 25w 35w COB Led Down Light Dali Dimmable IP44




Description:

MingFeng, as a prominent China LED down light manufacotry, devotes himself to providing high quality Dimmable LED down lights for the replacement of traditional down lights in residential, museum, office and commercial applications.
MingFeng Dimmable COB led down lights is the most comprehensive architectural LED downlights in the market to replace CFL downlight, power are 12W/16W/22W/30W/40W/50W,
Luminous Flux efficiency up to 90lm/w,Also CRI>80 is available, the whole series provide a collection of intelligent led lighting solutions,

 A reliable heat management and different optical systems based on the size of the lamps help exploit at the best characteristics of every luminaires, Dimmable LED DOWN LIGHTS maximize efficacy with minimum maintenance,making surroundings more dynamic. Advanced optic design precisely control the beam angle to achieve an ideal lighting effect. Anti-glare strcuture brings pleasant and comfortable visual experience.


Specifications:


Model No

MF-901S035

Input voltage

200-240Vac, 50hz/60hz

Power(watt)

14W / 25W / 35W

Dimension

Product Size: Dia233*120mm  Cutting hole size: 210mm

Color temperature

3000K /4000K/5000K/6000K

LED Chip

COB

LED Driver  Lifud

PF

>0.92

Housing Color

Matt White(RAL9003)

Luminous Flux (lm)

1100LM/2000LM/3000LM

CRI(Ra)

≥80

Lifespan

≥40000hrs

Beam Angle

600

Material

Die-casting Aluminum

Operating Temperature

-200C ~400C

Dimmable

Y

IP

20

Protection Against Shock

IK01

Dimension Single Package

270x240x130mm

Weight Single Package

1.83KG

Certificate

CE/RoHS

Warranty Period

5 years




Competitive Advantage:



  1. Die-casting aluminum heatsink, advanced cooling system.
  2. High output  COB LED Chips.
  3. Stable performance Lifud driver.
  4. 40 degree flood beam angle, soft light effect.
  5. Excellent reflector, complete visual comfort.
  6. IP44 design suitable for damp environment.
  7. Both CRI>80 and CRI>90 for option.
  8. Kn<10 driver, reliable performance.
  9. Smooth dimming on most dimmers.
  10. Life to 70% lumen maintenance, 45,000 hours.
  11. High power factor>0.92.
  12.  5 years guarantee.




 COB LED DOWN LIGHTS SHOW:



8 Inch 14w 25w 35w COB Led Down Light Dali Dimmable IP44

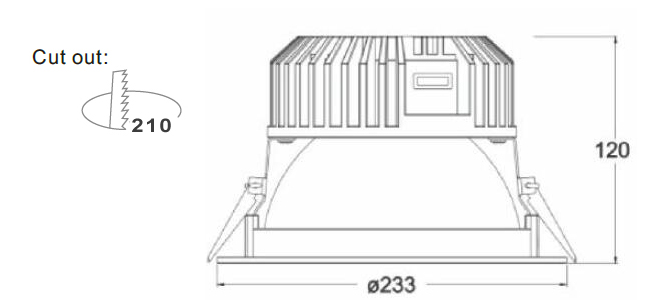

Dimension:



8 Inch 14w 25w 35w COB Led Down Light Dali Dimmable IP44






Applications:

Widely used in automobile exhibition, clothing shop, furniture store, shoe stores, jewelry store, exhibition, art exhibition hall, the villa, and hotel, etc.
