40W Dimmable COB LED Down Light 3300LM CRI 80 60 degree IP20 TUV-CE Approved
Quick Detail:
- 40W COB LED Down Lights
- Input: AC 85V-277V, 110/120VAC ,50/60Hz
- Luminous Flux:3100-3300LM
- CRI: >80
- Beam Angle: 24°/60°
- Lifespan: ≧35000Hrs
- IP: 20
- Dimmable: Yes
Description:
MingFeng, as a prominent China LED down light company, devotes himself to providing high quality COB
quality COB LED down lights for the replacement of traditional down lights in residential, museum, office
and commercial applications.
MingFeng COB LED square down light is the most comprehensive architectural LED downlights in the market to replace CFL downlight, power from 10W to 40W, brightness from 830to 3500LM. Also CRI>80
is available, the whole series provide a collection of intelligent led lighting solutions, bringing a revolution for commercial ligting.
Specifications:
| Model No | MF-S170040 |
| Input voltage | 85-277Vac , 110/220Vac, 50hz/60hz |
| Product Size | D200*132mm |
| Cut out Size | D170mm |
| Power(watt) | 40W |
| Color temperature | 2700K/3000K/4000K/5000K |
| LED Chip | CREE |
| PF | ≥0.95 |
| Luminous Flux (lm) | 3100-3300LM |
| CRI(Ra) | >80 |
| Lifespan | ≥35000hrs |
| Beam Angle | 60° |
| Material | Aluminum |
| Operating Temperature | -200C ~500C |
| Dimmable | Y |
| IP | 20 |
| Single Package | 183×183X140mm/pcs |
| Carton Size | 215×215X156mm/pcs,
66×66×34cm/18pcs. G.W: 22KG |
| Certificate | CE/RoHS |
| Warranty Period | 3 years |
Competitive Advantage:
- Die-casting heatsink, advanced cooling system.
- 24°/60° beam angle , soft light effect.
- High brightness CREE LED chip, CRI>80, Luminous Flux could from 830-3500LM.
- Luminous Efficiency >105lm/W.
- Smooth dimming or most dimmers.
- Isolation, IC constant current driver, and wide voltage 85-277VAC.
Dimension:
Packing:

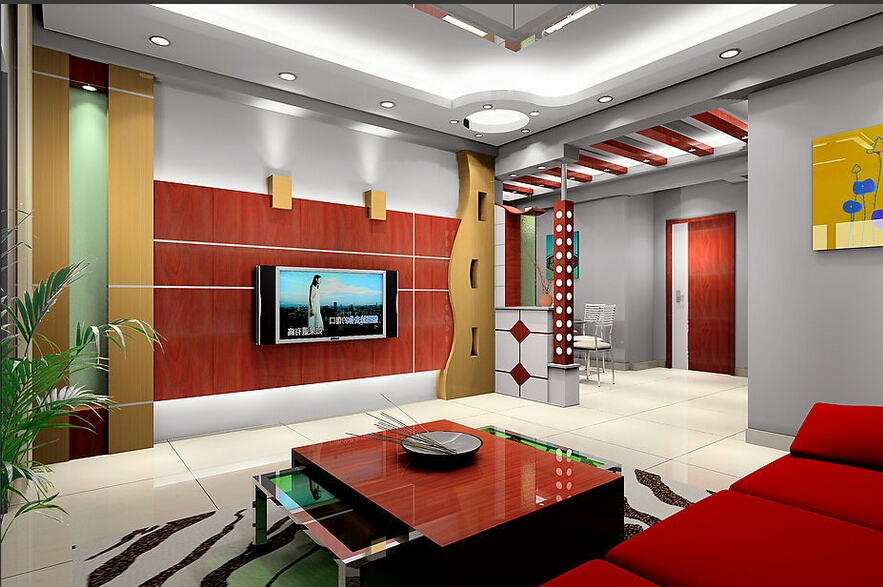

Applications:
Widely used in automobile exhibition, clothing shop, furniture store, shoe stores, jewelry store, exhibition, art exhibition hall, the villa, and hotel, etc.
