Technical Specification
| Item | MF-S08A 200BT | MF-S08A 300BT | MF-S08A 400BT | MF-S08A 500BT |
| Watt | 200W | 300W | 400W | 500W |
| Lumen | 28000LM | 42000LM | 56000LM | 70000LM |
| LED Brand | Lu-miled 5050/3030 |
| Driver | Meanwell Sosen INVENTRONICS |
| Luminous Efficacy | 145LM/W-155LM/W |
| Beam Angle | 15° /25° /40° /60° /90° /P45° |
| CCT | 3000K/4000K/5000K/6000K/CCT etc |
| Input Voltage | 100-277V/347-480V |
| CRI | 70/80/90 |
| Lifespan | 50,000hours |
| Surge Voltage | 10KV |
| Operation Temperature | Ta=40 |
| IP Rating | IP66 |
| Warranty | 5 years |
Options

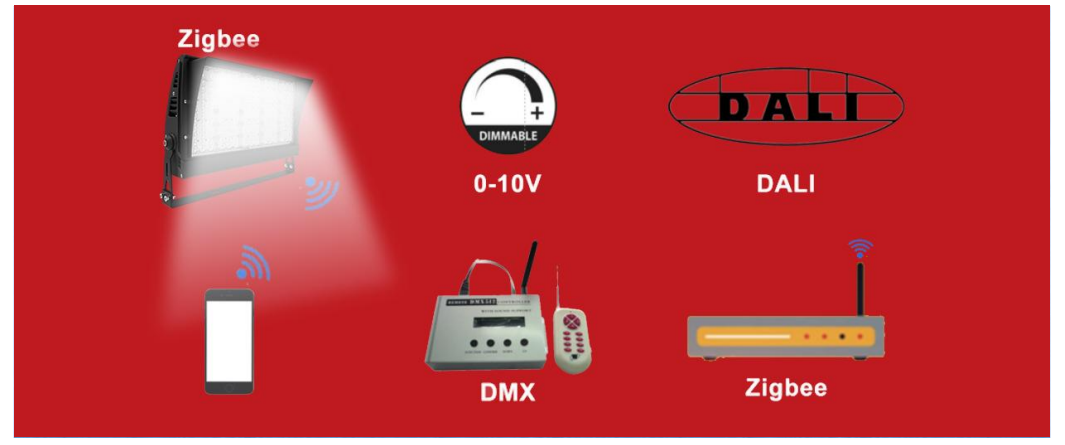

Dimming 0-10V, DMX, DALI modes optional

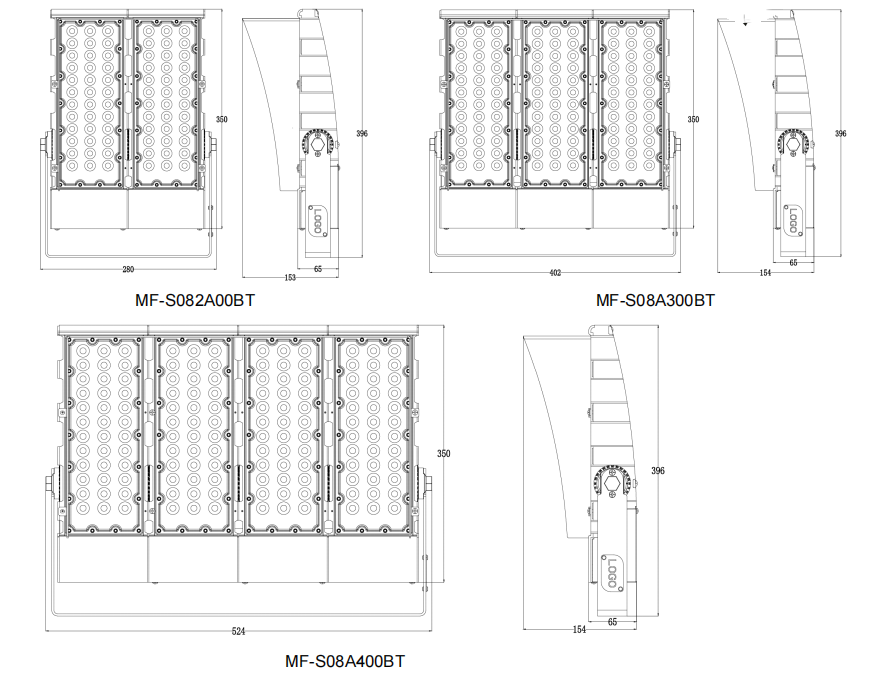

Dimensions

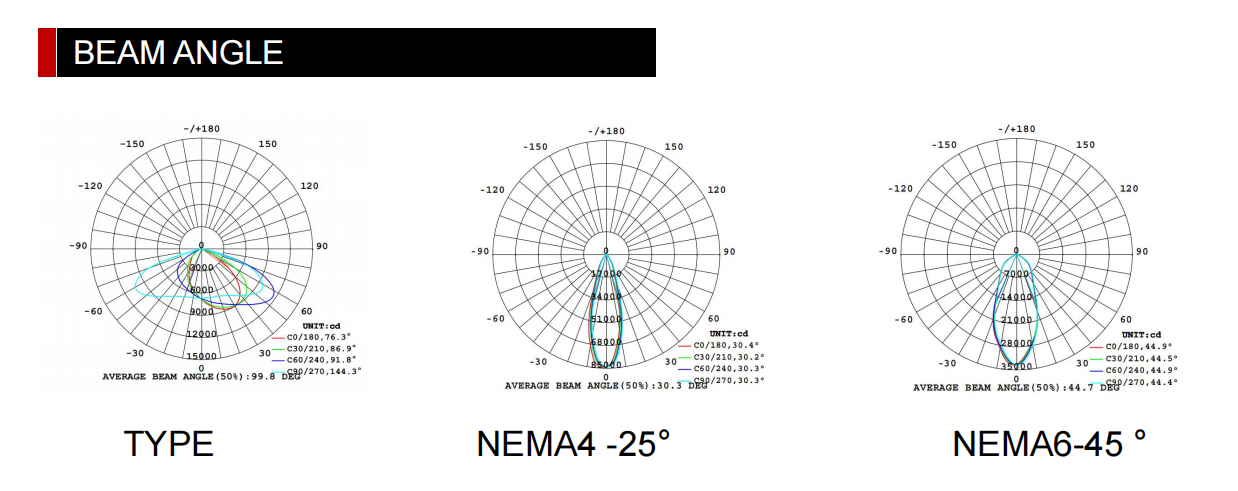

Light Distribution Curve
Packing
| Item | 8A200BT | 8A300BT | 8A400BT | 8A500BB |
| Watt | 200W | 300W | 400W | 500W |
| QTY | 1 | 1 | 1 | 1 |
| N.W | 4.71kg 10.4lb | 6.56kg 14.5lb | 9.2kg 20.3lb | 14.5kg 32lb |
| G.W | 5.65kg 12.3lb | 7.8kg 17.2lb | 10.5kg 23.15lb | 16.3kg 36lb |
| Carton | 445*330*135mm
17.5*13*5.3inch | 455*445*135mm 17.9*17.5*5.3inch | 575*445*135mm 22.6*17.5*5.3inch | 695*445*135mm 27.4*17.5*5.3inch |

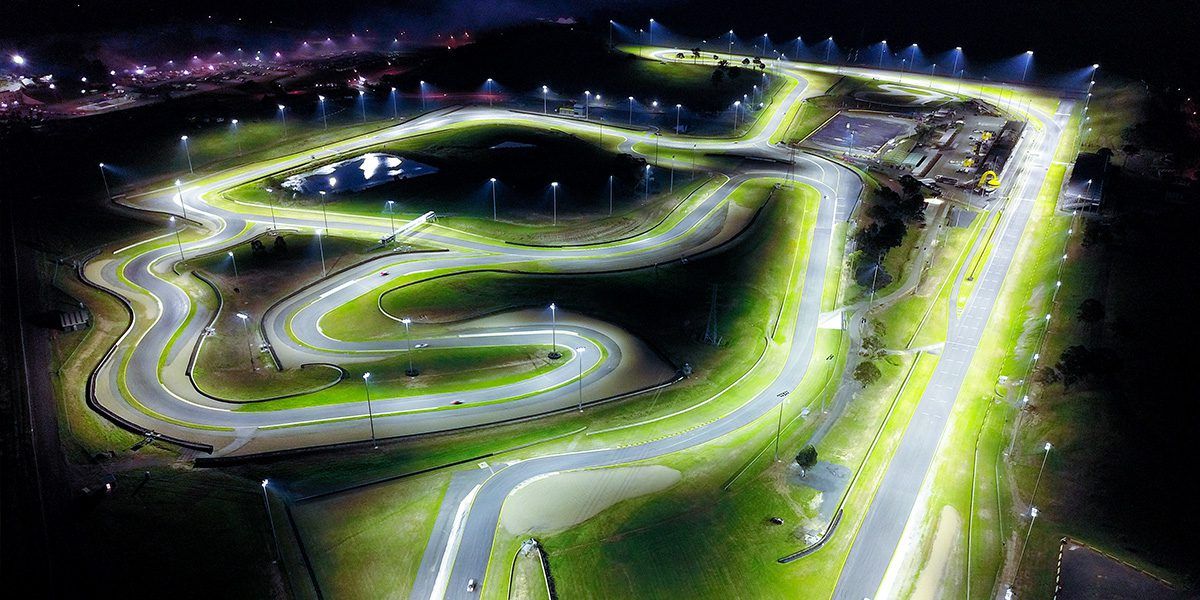

Applications
LED flood lights are used for outdoor lighting, security purposes, landscape illumination, construction sites, events, signage lighting, industrial environments, residential lighting, and emergency lighting.
FAQ
Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.
Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.
Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.
Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order,15 working days for bulk order, but sometimes depend on the order quantity.
|
|
