170lm/W 100W 300W LED Street Light Waterproof High Power For Outdoor Lighting Roadway Highway
Efficacy: Up to 170Lm/W
LED Chip: LUMILEDS 5050
SDCM: <5
Beam Angle: 60/90/T2M/T3M/T4M PC lens;
IP Rating: IP66
Installation: 40mm/50mm/60mm optional
Certifications: CE ,SAA, CB, RoHS
Warranty: 5 years
ENERGY SAVING CONTROL OPTION: DIM - 0-10 volt dim-ming enabled with controls by others.
EXPECTED LIFE: Minimum 100,000 hours depending uponthe ambient temperature of the installation location.
LEDS:Select high-brightness LEDs in Warm White NeutralWhite or Cool White color temperature, 80 CRl.
DISTRIBUTION/PERFORMANCE:High performance, multifaceted, reflector provides uniform Forward Throw (FI) dis-tribution with sharp backlight cutoff photometric data istested in accordance with IESNA quidelines
OPERATNG TEMPERATURE: -30°C to +55°C(-40F to +122°F)
WARRANTY: 7 years warranty SHIPPING WEIGHT:3.6 KG/4.2 KG3.6 KG/42 KG -5 KG/5.8 KG (in carton)
HOUSING:One-piece, die-formed aluminum housing contains factory prewired driver in a gasketed, weather-resistant wiring compartment.Hinged wiring access door (with safety lanyard) located underneath. Fixture is IP65 rated.
OPTICAL UNIT:Precision engineered lenses made of opti.cal grade Mitsubishi polycarbonate for maximum lightintensity. Come standard with field-rotatable optics

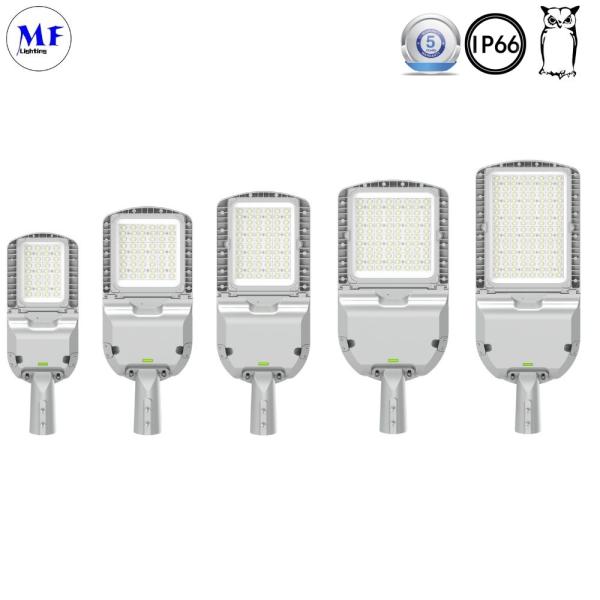

Owl-II LED Street Light is the most cost-effective professional LEDstreet light launched by MF Lighting . Owl-II was designed toprovide customers with tool-free installation, lower maintenancecosts, and lower operating costs. Hi-rise LED Street Light featuresmodern streamlined geometry, exquisite design, attention todetail, and outstanding application performance, energy efficiency
and system reliability
Product Data
| Model | MF-LD-C30W
MF-LD-C50W
MF-LD-C80W | MF-LD-C100W | MF-LD-C150W | MF-LD-C200W
MF-LD-C250W | MF-LD-C300W |
| Wattage | 30W/50W/80W | 100W | 150W | 200W/250W | 300W |
| Lumen | 13600Lm | 17000Lm | 25500Lm | 42500Lm | 51000Lm |
LED QTY
(pcs) | 48 | 72 | 96 | 128 | 192 |
Light
Source | LUMILEDS 5050 |
Luminous
Efficacy | 150-170Lm/W |
| CCT | 2700K/3000K/4000K/5000K/5700K/6500K |
| CRI | >70(Ra≥80 optional) |
Input
Voltage | 100-277Vac |
| Arm Dia. | 40mm/50mm/60mm optional |
Housing
Material | Aluminum,Glass |
Operating
Temperature | -40°℃ to +50℃ |
Operating
Humidity | 10%to 90%RH |
| Lifespan | >50000hours |
ErP Technical Specification
| Item | Specification/Data |
| Efficiency In | >92% |
| Power Factor | >0.92 |
| Energy Efficiency Class (EU 2019/2015) | B |
| SDCM | <5 |
| Starting Time | <0.5s |
| Life time | L80B20@50000hours |
Repair and maintenance
When repairs or maintenance are required, the entire street light source and drive can be disassembled in a modular manner, which is convenient and convenient to disassemble and install.

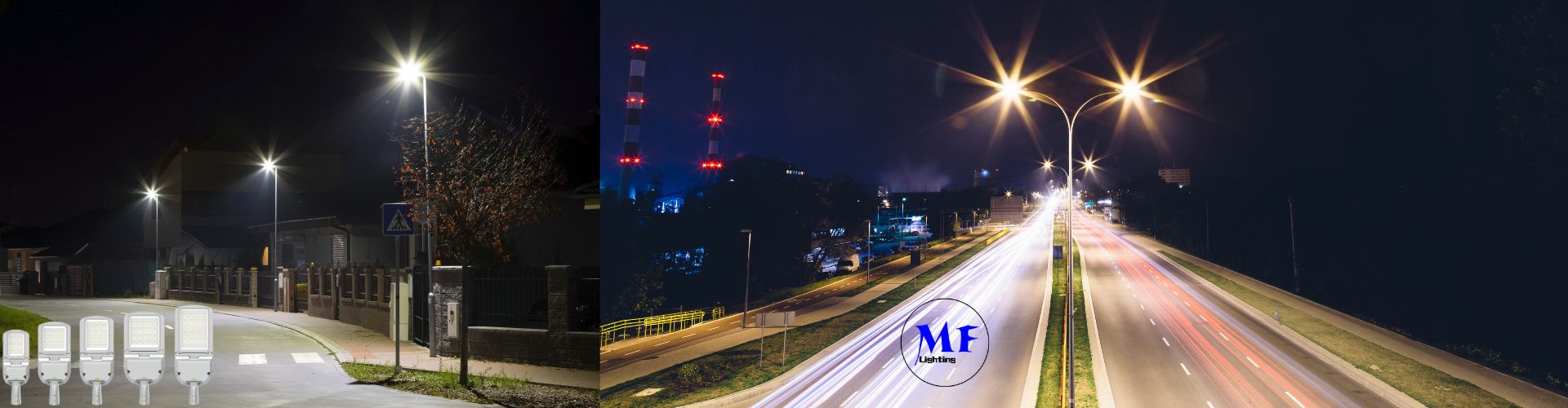

Highway,National road,Country road,Bicycle lanes,Sidewalks ,Courtyard etc.
About us:
Our factory has been producing LED lights for indoor and outdoor applications, Such as LED down lights, LED Panel Light,LED wall light,LED tube light, LED spot light, LED track light,LED ceiling light,LED high bay light,LED tri-proof light,LED flood light, LED high mast light, LED Stadium light, LED street light, LED Garden light and LED explosion proof light.
Our products are widely intalled in large-scale lighting applications, such as in large farms, factories, schools, bridges, tunnels, ports, subways,airports,minings, hospitals and many other applications.
Mingfeng specializes in LED lights, and produces and exports high-quality LED light fixtures to Asia, Europa, North American, Latin American and Pacafic ocean island for almost 132 countries, all LED lights are under ISO9001 system with professional team management, the certificate of CE, CB, ENEC,RoHS,CSA, UL, SAA and REACH are certifiedy by SGS or TUV depends on LED lights family.
MF R&D team are with passion, persistence and technology know-how to develp our LED lights, our engineers takes our LED develpment as baby care onto any single tiny details, the aim to this is that providing high quality LED lights by our vision plus knowleadge ,and at the end of story,enable an quality life and work under MF lights for all users in this planet, MF stuff knows "LIGHTS THE WORLD" is not a joke, but make it happen day by day with hard working.
