IP66 LED Street Light Waterproof 170lm/W High Power For Outdoor Lighting Roadway Highway

Brand Name : MF

Model Number : MF Owl II Street light

Certification : CE, RoHS,SAA,TUV,CB,ETL,UL

Place of Origin : China

MOQ : 100PCS

Price : Negotiable

Payment Terms : T/T, Western Union, L/C, Paypal

Supply Ability : 5,000pcs/Month

Delivery Time : Depends on orders

Packaging Details : 16.5*15*22cm/1pcs, G.W: 1.2Kg

Power supply : AC

CCT : 2700K-6500K

Material : Aluminum+Glass

Power : 30W/50W/80W/100W/150W/200W/250W/300W

IP RATE : IP66

Voltage : AC 200V-277V

LED Chip : LUMILEDS 5050/Philips EMC5050

Ik Rate : Ik10

Beam Angle(±3) : Typeii,Typeiii,Typeiv,60°,90°

SDCM : <5

Installation : 40mm/50mm/60mm optional

Efficacy : Up to 170Lm/W

Frequency : 50Hz-60Hz

CRI : >70,80 optional

Operating temperature : -40°C to +50°C

Operating humidity : 10% to 90% RH

Efficiency In : >92%

Power Factor : >0.92

Energy Efficiency Class (EU 2019/2015) : B

Starting Time : <0.5s

Life time : 50000hours

Contact Now

IP66 LED Street Light Waterproof 170lm/W High Power For Outdoor Lighting Roadway Highway

IP66 LED Street Light Waterproof 170lm/W High Power For Outdoor Lighting Roadway Highway



  1. Efficacy: Up to 170Lm/W
  2. LED Chip: LUMlLEDS 5050
  3. SDCM: <5
  4. Beam Angle: 60/90/T2M/T3M/T4M PC lens;
  5. IP Rating: IP66
  6. Installation: 40mm/50mm/60mm optional
  7. Certifications: CE ,SAA, CB, RoHS
  8. Warranty: 5 years

IP66 LED Street Light Waterproof 170lm/W High Power For Outdoor Lighting Roadway Highway





IP66 LED Street Light Waterproof 170lm/W High Power For Outdoor Lighting Roadway Highway

Owl-3 LED Street Light is the most cost-effective professional LEDstreet light launched by MF Lighting . Owl-3 was designed toprovide customers with tool-free installation, lower maintenancecosts, and lower operating costs. Hi-rise LED Street Light featuresmodern streamlined geometry, exquisite design, attention todetail, and outstanding application performance, energy efficiency
and system reliability

IP66 LED Street Light Waterproof 170lm/W High Power For Outdoor Lighting Roadway Highway






IP66 LED Street Light Waterproof 170lm/W High Power For Outdoor Lighting Roadway Highway




Model

MF-LD-C30W

MF-LD-C50W

MF-LD-C80W

MF-LD-C100W MF-LD-C150W

MF-LD-C200W

MF-LD-C250W

MF-LD-C300W
Wattage 30W/50W/80W 100W 150W 200W/250W 300W
Lumen 13600Lm 17000Lm 25500Lm 42500Lm 51000Lm
LED QTY (pcs) 48 72 96 128 192
Light Source LUMILEDS 5050
Luminous Efficacy 150-170Lm/W
CCT 2700K/3000K/4000K/5000K/5700K/6500K
CRI >70(Raz80 optional)
Input Voltage 100-277Vac
Arm Dia. 40mm/50mm/60mm optional
Housing Material Aluminum, Glass
Operating temperature -40℃ to +50°℃
Operating humidity 10% to 90% RH





ErP Technical Specification



Item Specification/Data
Efficiency In >92%
Power Factor >0.92
Energy Efficiency Class (EU 2019/2015) B
SDCM <5
Starting Time <0.5s
Life time L80B20@50000hours

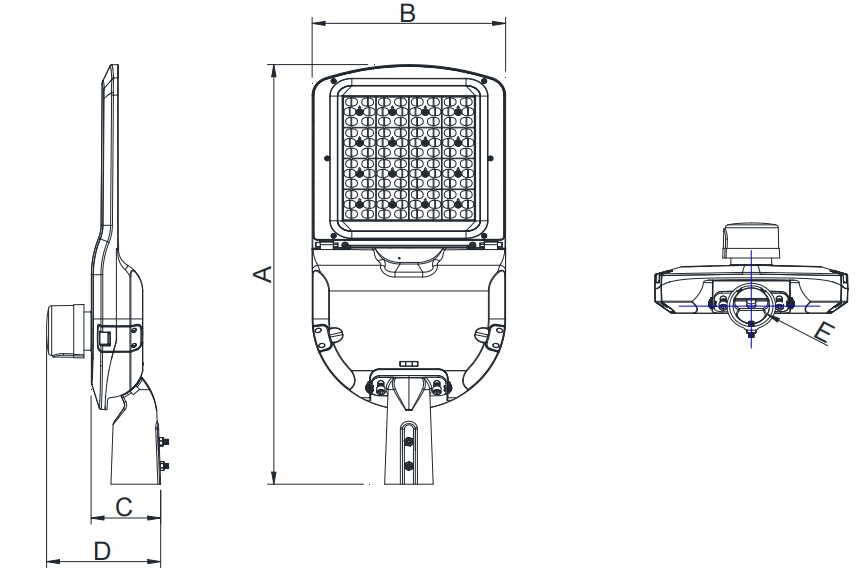

Dimension:

IP66 LED Street Light Waterproof 170lm/W High Power For Outdoor Lighting Roadway Highway



Model A(mm) B(mm) C(mm) D(mm)
30W
50W
80W
568 200 109 178
100W 613 240 109 178
150W 683 260 109 178
200W 693 300 109 178
300W 793 300 109 178

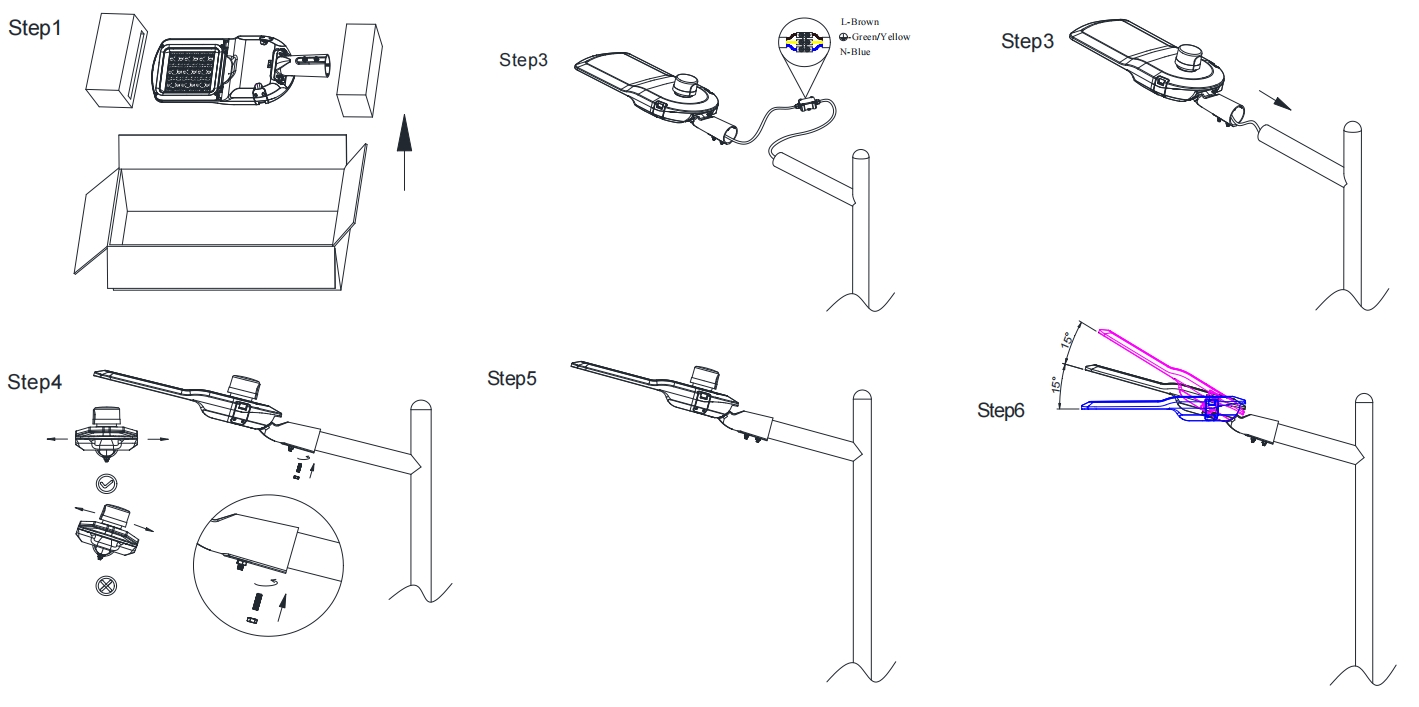

Installation:

IP66 LED Street Light Waterproof 170lm/W High Power For Outdoor Lighting Roadway Highway



Repair And Maintenance:

When repairs or maintenance are required, the entire street light source and drive can be disassembled in a m odular manner, which is convenient and convenient to disassemble and install

IP66 LED Street Light Waterproof 170lm/W High Power For Outdoor Lighting Roadway Highway



IP66 LED Street Light Waterproof 170lm/W High Power For Outdoor Lighting Roadway Highway

  1. Parking lot light
  2. Urban/Village Street
  3. Road
  4. Highways
  5. Garden/Park
  6. Schoole/Square/Hospital
  7. Any Large Outdoor Are,etc




IP66 LED Street Light Waterproof 170lm/W High Power For Outdoor Lighting Roadway Highway



LED Street Lights find a wide range of applications in various urban and outdoor settings. Their versatility and efficiency make them an ideal choice for illuminating streets, roads, and highways. Here are some key applications of LED Street Lights: City Streets: LED Street Lights are commonly used to light up city streets, ensuring safe and well-lit pathways for pedestrians, cyclists, and drivers. Their bright and uniform illumination improves visibility and reduces the risk of accidents, enhancing overall road safety. Highways and Expressways: LED Street Lights are extensively deployed on highways and expressways to provide clear visibility over long distances. They help drivers navigate these high-speed roads safely by ensuring well-lit surroundings, minimizing glare, and improving overall visibility.



LED Street Lights find a wide range of applications in various urban and outdoor settings. Their versatility and efficiency make them an ideal choice for illuminating streets, roads, and highways. Here are some key applications of LED Street Lights: City Streets: LED Street Lights are commonly used to light up city streets, ensuring safe and well-lit pathways for pedestrians, cyclists, and drivers. Their bright and uniform illumination improves visibility and reduces the risk of accidents, enhancing overall road safety. Highways and Expressways: LED Street Lights are extensively deployed on highways and expressways to provide clear visibility over long distances. They help drivers navigate these high-speed roads safely by ensuring well-lit surroundings, minimizing glare, and improving overall visibility.

IP66 LED Street Light Waterproof 170lm/W High Power For Outdoor Lighting Roadway Highway

Residential Areas: LED Street Lights are also used in residential areas, providing adequate lighting for neighborhoods and communities. They enhance security by illuminating residential streets, driveways, and public spaces, creating a sense of safety and discouraging criminal activities. Parking Lots: LED Street Lights are commonly installed in parking lots to ensure sufficient lighting for vehicles and pedestrians. Their bright and evenly distributed light helps drivers park safely, improves visibility during nighttime, and enhances security in parking areas.

IP66 LED Street Light Waterproof 170lm/W High Power For Outdoor Lighting Roadway Highway

Parks and Recreational Areas: LED Street Lights are used in parks, playgrounds, and recreational areas to provide a safe and inviting environment for outdoor activities. They enhance visibility for evening walks, jogging, and sports activities, allowing people to enjoy these spaces even after dark. Commercial and Industrial Areas: LED Street Lights are employed in commercial and industrial areas to ensure proper lighting for businesses, warehouses, and manufacturing facilities. They offer energy-efficient lighting solutions that contribute to cost savings and create a well-lit working environment. Smart City Integration: LED Street Lights can be integrated into smart city systems, enabling advanced control and management features. They can be connected to a centralized control system for remote monitoring, dimming, and scheduling, optimizing energy consumption and reducing maintenance efforts.



Packing:

IP66 LED Street Light Waterproof 170lm/W High Power For Outdoor Lighting Roadway Highway



About us:



Our factory has been producing LED lights for indoor and outdoor applications, Such as LED down lights, LED Panel Light,LED wall light,LED tube light, LED spot light, LED track light,LED ceiling light,LED high bay light,LED tri-proof light,LED flood light, LED high mast light, LED Stadium light, LED street light, LED Garden light and LED explosion proof light. Our products are widely intalled in large-scale lighting applications, such as in large farms, factories, schools, bridges, tunnels, ports, subways,airports,minings, hospitals and many other applications.

Mingfeng specializes in LED lights, and produces and exports high-quality LED light fixtures to Asia, Europa, North American, Latin American and Pacafic ocean island for almost 132 countries, all LED lights are under ISO9001 system with professional team management, the certificate of CE, CB, ENEC,RoHS,CSA, UL, SAA and REACH are certifiedy by SGS or TUV depends on LED lights family.

MF R&D team are with passion, persistence and technology know-how to develp our LED lights, our engineers takes our LED develpment as baby care onto any single tiny details, the aim to this is that providing high quality LED lights by our vision plus knowleadge ,and at the end of story,enable an quality life and work under MF lights for all users in this planet, MF stuff knows "LIGHTS THE WORLD" is not a joke, but make it happen day by day with hard working.
