SPCC 40 W 60 W 150 W CRI 80 LED Street Lamp 100000 Hours

IK08 Waterproof Streamlined LED Street Light

Technical Parameter:

Product Name : MF-BLX355L-40W     MF-BLX420L-60W     MF-BLX505L-90W
                         MF-BLX650L-120W   MF-BLX650L-150W    MF-BLX650L-200W
System Power : 40W 60W 90W 120W 150W 200W
Luminous Flux : 5200LM±5%, 7800LM±5%, 11700LM±5%, 15600LM±5%, 19500LM±5%, 26000LM±5%
LED QTY : 40pcs 60pcs 96pcs 128pcs 192pcs 192pcs
LED Brand : Lumileds3030
CCT : 3000K, 4000K,5000K, 5700K,6500K
Beam Angle : 85*150°
CRI : ≥80Ra
Power Supply : Meanwell/ Sosen
Input Voltage : AC100-277V/AC220-240V,50/60Hz
Power Factor : ≥0.9
THD : <15%
Material : AL1070&SPCC
Ingress Protection : IP65
IK Grade : IK08
Certificate : CE,RoHS
Operating Temp. :  -30℃-45℃
Operating Humidity : 15%-90%RH
Storage Temp. :  -40℃-70℃,
Storage Humidity : 10%-95%RH
Warranty Period 5 years

Product details:


            Built-in SOSEN driver                                                Laser trademark(OEM)


   Butterfly screw safe and convenient                  Lumileds3030 chips and PC len


IK08 LED Street light Special Characteristic:
1. Distribution Curve Flux

                                                        85*150°

2.Product Features:

a.Luminous efficiency up to 130lm/w;
b.Series and Parallel circuit board design, improves the stability of the light;
c.Use high quanlity A1070 aluminum plates as the radiator, with excellent heat dissipation and heat conduction;
d.Use transparent optical PC lens of high light transmittance 92%, with uniform and soft light output;
e.Using constant current LED driver to improve the stability as well as the efficiency of the lamps;
f.Panel beating structure design and streamline appearance;
g.Lampshade can be opened manually for easy maintain;
h.Easy installation, reduce the working time at nigh altitudes;

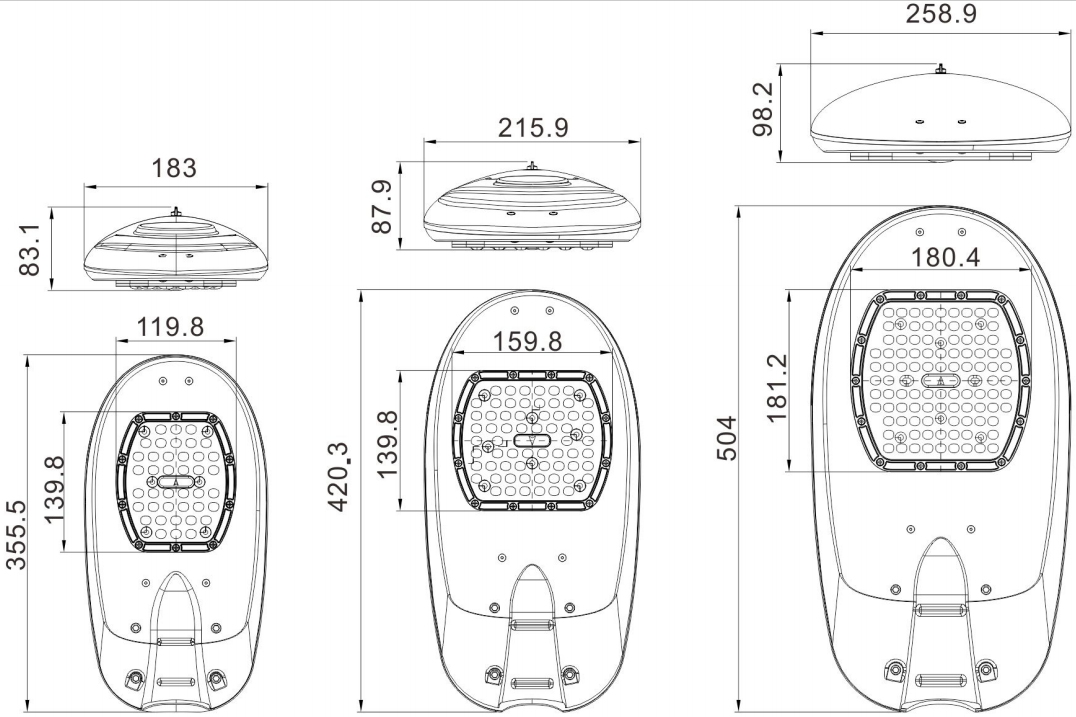

IK08 LED Street light Dimensions:


                  40W Size                                       60W Size                                               90W Size

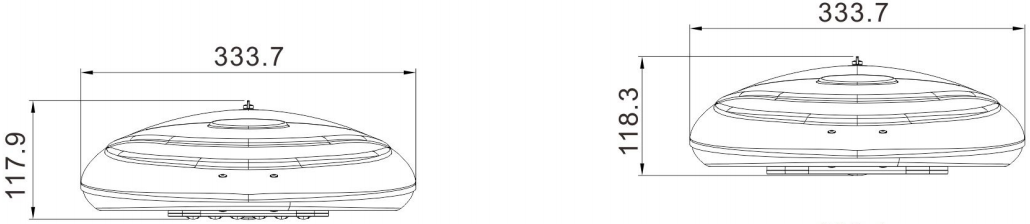

                                    120W Size                                                                      150/200W Size


Installation Method :

1.Turn off the Electric protection switch.
2.Loosen the butterfly screw (see as figure1) and lift the upper cover(see as figure 2).




3.Lift the supporting steel wire(see as figure 2) and buckle it into the clip hook of supporting fixed.Plate on the upper cover to
   keep the upper (see as figure 3).

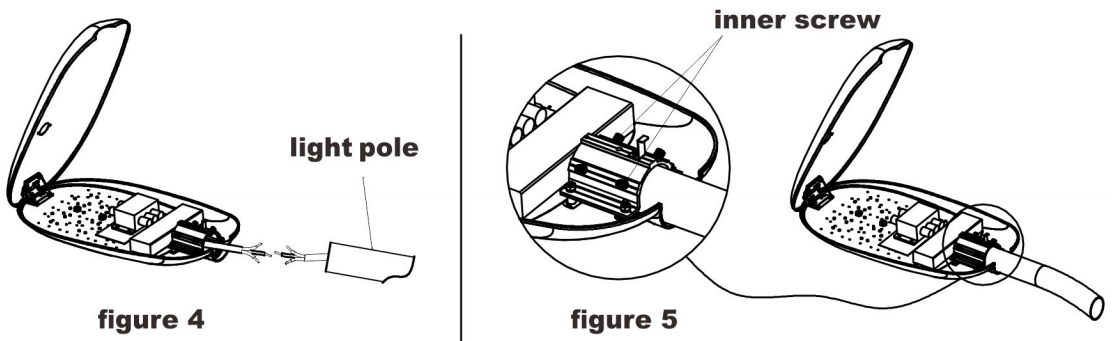

4.Connect the wire, according to figure 4:
   AC Input: L (Brown/Red) - Live, N (Blue/Black) - Zero, (Yellow Green) - Ground.
   DC Input: "+" (Brown/Red)  - Positive, "-" (Brown/Red)  - Negative.

.

5.Put the lamp on the lamp pole and fasten the 4pcs inner screws, as shown in figure 5.
6.Pull the supportign steel wire out of the clio hook(see as figure 6) and press it flat on the lower cover, then close the
   upper cover and tighten the butterfly screws(see as figure 6-7).



Package :




TUV CRI 80 LED Street Lamp

60 W SPCC LED Street Lamp

155LM/W LED Roadway Lights
