Energy Saving 180W 18000 lm LED Roadway Lights 3000K-6500K With Meanwell Driver
Quick Detail:
- 180W LED Modular Roadway light
- Input: AC 85V-265V, 50/60Hz
- Luminous Flux:≧18000 Lm
- CRI: 70
- Brand chip:
- LED Driver: Meanwell
- Adjustable: -15 to +15
- IP:66
IP65 AC85 -265 Outdoor 180W LED Roadway Lights With Chip Meanwell Driver
Description:
LED roadway lights embrace typical European and American style solid and slender , flexible current driving range , thermal and optical integrated modular system , the light distribution of multiple choice , free tool for installation and maintenance, complete solutions , widely applicable installation transition from the old and the various control methods.
These LED roadway lighting series combines all street LED lighting features together including economic, long lifespan and environment protection. Applied with the best LED from , the street light attains over 90 lm/w illumination efficiency. Accelerated by Professional Unique Optical Lens, Ming Feng LED street light distribute all the light onto road with maximum effect.
Specifications:
| Item | MF-Y200W |
| Input voltage | 85-265Vac 50Hz/60Hz |
| LED Power | 180W |
| Rated Power | 200W |
| Delivered Flux(Tj80°c) | 18000 lm |
| IP Rating | IP66 |
| LED QTY | 84 pcs |
| Color temperature | 3000K-6500K |
| LED Chip |
|
| LED Driver | Meanwell |
| Color Rendering Index | Ra>70 |
| Power Factor | >0.9 |
| Lifespan | ≥50,000hrs |
| Operation Environment | Temperature:-40°C~50°C/Humidity:10%~95% |
| Material | Aluminum Alloy |
| Product Size(mm) | 721(L)*307(W)*127(H) |
| Net Weight | 7.5Kg |
| Certificate | CE/RoHS |
| Warranty Period | 5 years |
Competitive Advantage:
1. Modular design, the light efficient reach 90lm/W
2. The light source use 120M/W rebels, the luminaire reach 90M/W
3. Non-image optics system, improves lumen output ratio
4. High efficiency driver system from Meanwell
5. Power box free tool to open, easy installation and maintenance
6. Elegant appearance, open air ventilation design, good heat dissipation function
7. “Tool free” locking design to open and close the driver compartment simply, easy installation and maintenance
8. The installation angle can be adjustable from -15 to +15

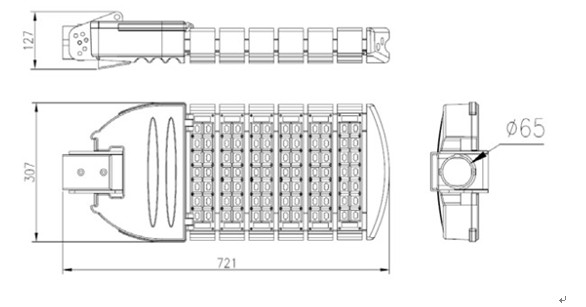

Product Dimensions(mm):
Packing:
Applications:
Wildly use on free way, Main road, Secondary main road etc.
