20W Meanwell Driver 1830LM Samsung Chip LED Coutryard Light IP65 Wall Mounted
Description:
Excellent manufacturers of LED street lights in china, Ming Feng Come out LED courtyard light series in 2011. These LED street lighting series combines all street LED lighting features together including economic, long lifespan and environment protection. Applied with the best LED from SAMSUNG, the street light attains over 78 lm/w illumination efficiency. Accelerated by Professional Unique Optical Lens, Ming Feng LED street light distribute all the light onto road with maximum effect.
LED courtyard light embrace typical European and American style solid and slender , flexible current driving range , thermal and optical integrated modular system , the light distribution of multiple choice , free tool for installation and maintenance, complete solutions , widely applicable installation transition from the old and the various control methods.
Specifications:
| Item | MF-Y020W |
| Input voltage | 85-265Vac 50Hz/60Hz |
| LED Power | 20W |
| Rated Power | 24W |
| Delivered Flux(Tj80°c) | 1830lm |
| IP Rating | IP65 |
| LED QTY | 40 pcs |
| Color temperature | 3000K-6500K |
| LED Chip | SAMSUNG |
| LED Driver | Meanwell |
| Color Rendering Index | Ra>70 |
| Power Factor | >0.9 |
| Lifespan | ≥50,000hrs |
| Operation Environment | Temperature:-40°C~50°C/Humidity:10%~95% |
| Material | Aluminum Alloy |
| Product Size(mm) | 374(L)*114(W)*112(H) |
| Packing Size(mm) | 422(L)*148(W)*128(H)/1pcs |
| Net Weight | 0.9Kg |
| Gross Weight | 1.1Kg |
| Certificate | CE/RoHS |
| Warranty Period | 5 years |
Competitive Advantage:
1. Die-cast roadway light
2. The light source use 100M/W SAMSUNG chip, the luminaire reach 78M/W
3. Beautiful appearance for the shell
4. High efficiency driver system from Meanwell
5. The product is suitable for use in the streets, walkways, park, garden light, etc
6. Warranty:5 years
20W LED Coutryard Light details:
Product Size:

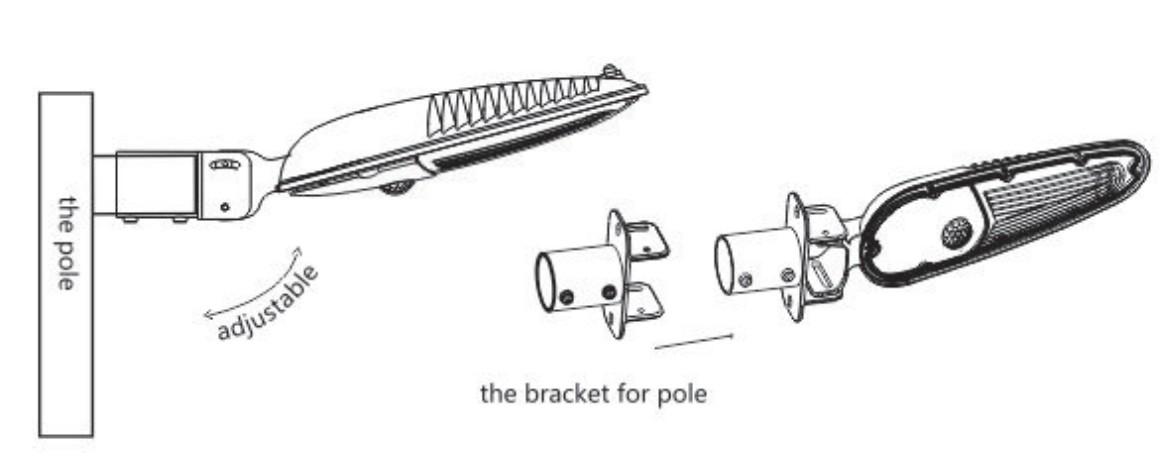

Installation Diagram Description:
1. Installed on the pole
2. Install on the wall
Packing:

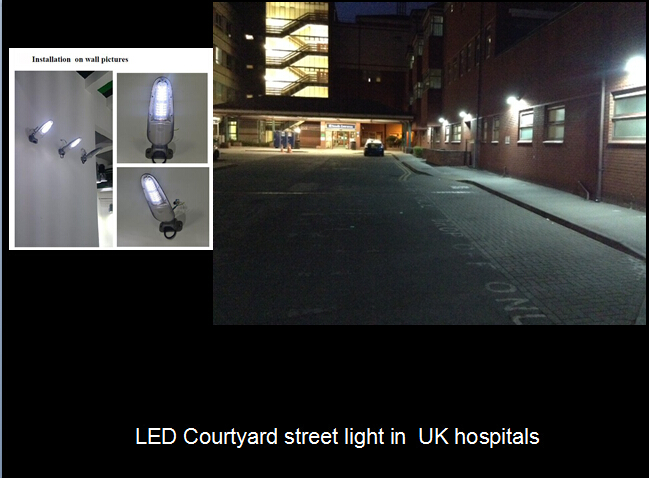

Applications:
The product is suitable for use in the streets, walkways, park, garden light, etc
