Dimmable LED Down Light 15 Watt 800Lumen CITIZEN COB LED Chips IP20

Place of Origin : China

Brand Name : MF

Certification : CE, RoHS

Model Number : MF-A05C096

MOQ : 100PCS

Price : Negotiable

Packaging Details : 138X88X98mm/1pcs, G.W: 270g

Delivery Time : Depends on orders

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 10,000pcs/Month

Contact Now


Dimmable LED Down Light 15 Watt 800Lumen CITIZEN COB LED Chips IP20



Quick Detail:


  1. 15W COB Modular LED Down light
  2. Input: AC 200V-240V, 50/60Hz
  3. Luminous Flux:≧1200Lm
  4. CRI: >85
  5. Beam Angle: 24°,60°
  6. LED chip: CITIZEN
  7. Protection Against Shock: IK01
  8. IP: 20
  9. Dimmable: Yes



Description:

MingFeng, as a prominent China COB LED down light company, devotes himself to providing high quality COB LED down lights for the replacement of traditional down lights in residential, museum, office and commercial applications.
Long LED lifespan comes from scientific thermal management. Superior material, heat sink appearance design and the thermology application, not a single one of these can be dispensed with Ming Feng Lighting utilize distinctive highly thermal conductivity material, unique multi-surface and hole designing for heat sink making the air flow fast, which fully taking away the heat and keeping the junction temperature of LED chips very low.


Specifications:


Model No:

MF-A05C096

Input voltage

200-240Vac, 50hz/60hz

Power(watt)

15W

Dimension

¢96X H114mm, Cut-size: ¢85mm

Color temperature

3000K /4000K/ 5000K

LED Chip

CITIZEN

PF

>0.92

Luminous Flux (lm)

800LM,1200lm

CRI(Ra)

≥85

Lifespan

≥35000hrs

Beam Angle

24°,60°

Material

Aluminum Alloy

Operating Temperature

-200C ~450C

Dimmable

Y

IP

20

Protection Against Shock

IK01

Dimension Single Package

138x88x98mm

Weight Single Package

270g

Certificate

CE/RoHS

Warranty Period

3 years




Competitive Advantage:


  1. High output Citizen COB LED chips
  2. 24°and 60°beam angle for option
  3. CRI> 85
  4. High efficient reflector (94%)
  5. Smooth and linear dimming on most dimmers
  6. Advanced thermal management
  7. Life to 70% lumen maintenance- 45,000hrs
  8. High power factor>0.92
  9. 3 years guarantee
  10. Professional design compatible with all types of MingFeng mounted ring, and conventional MR16 fitting with “C” clip for fixing

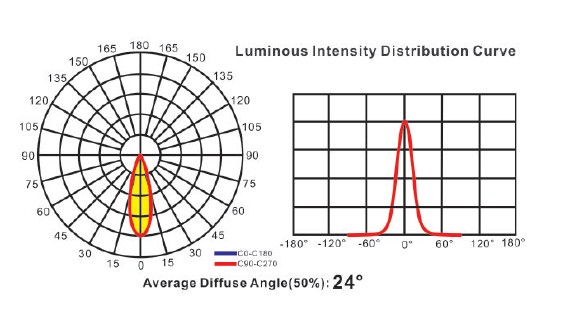

Light distrution curve:

Dimmable LED Down Light 15 Watt 800Lumen CITIZEN COB LED Chips IP20

Dimmable LED Down Light 15 Watt 800Lumen CITIZEN COB LED Chips IP20

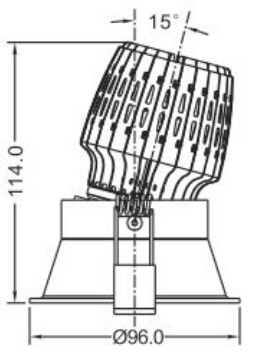

Dimension:

Dimmable LED Down Light 15 Watt 800Lumen CITIZEN COB LED Chips IP20


Applications:


Widely used in automobile exhibition, clothing shop, furniture store, shoe stores, jewelry store, exhibition, art exhibition hall, the villa, and hotel, etc
